Preserve signal integrity while making fixtures fast to configure and service.
Instrumentation, data acquisition and production test fixtures depend on repeatable mating, defined shielding and unambiguous pin assignments. Connector selection should account for signal type, cycle count, panel density and the way technicians change fixtures.
What the system must connect

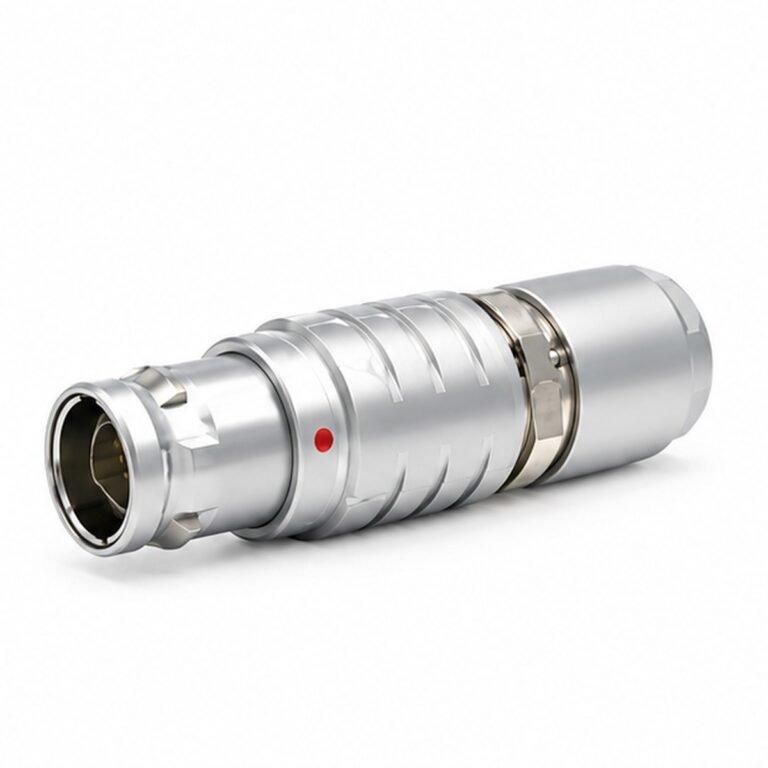

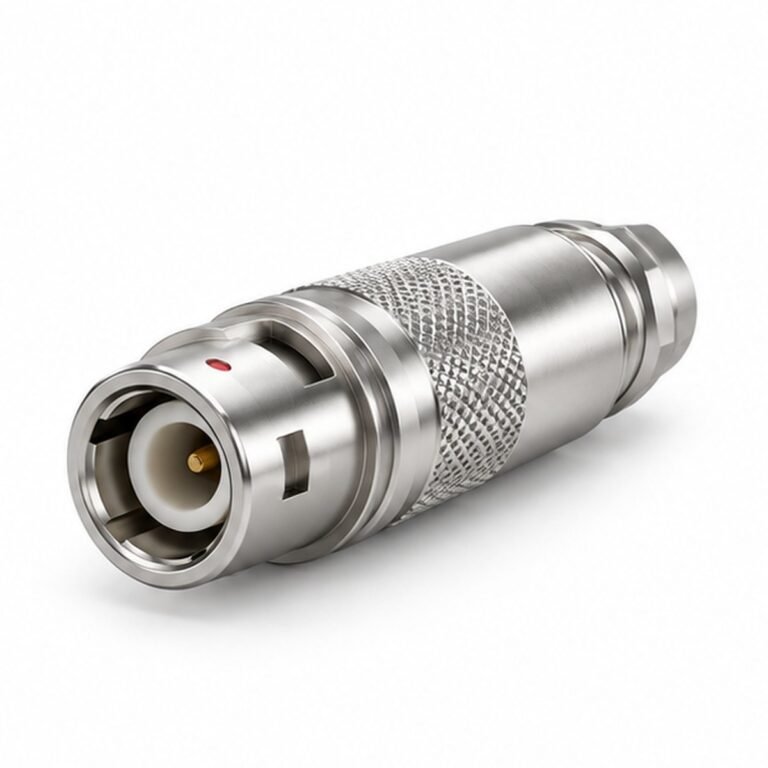

- Metal push-pull connectors for rapid, repeatable fixture changes.
- Multipole, coaxial and mixed-contact arrangements for instrumentation signals.

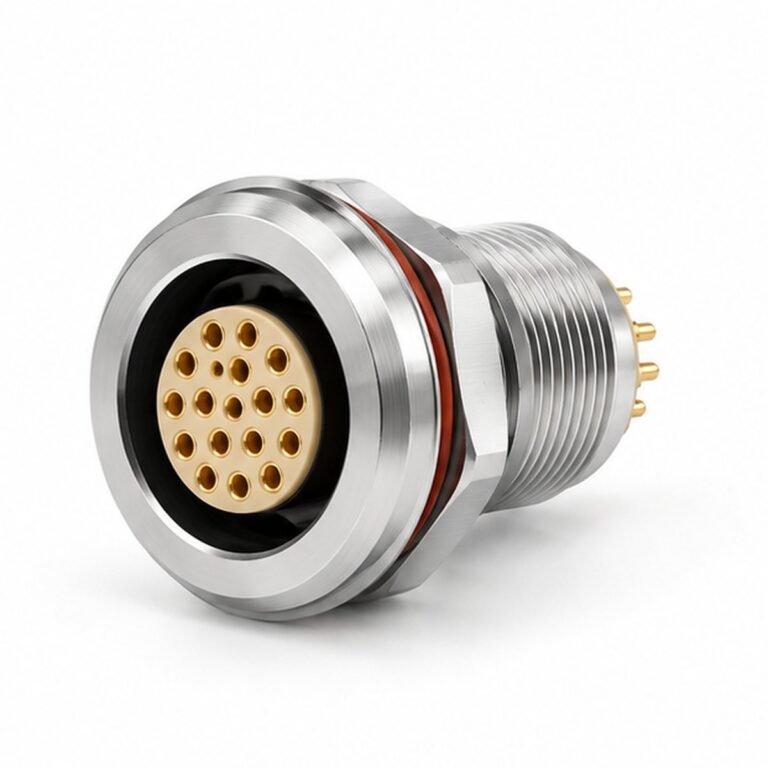

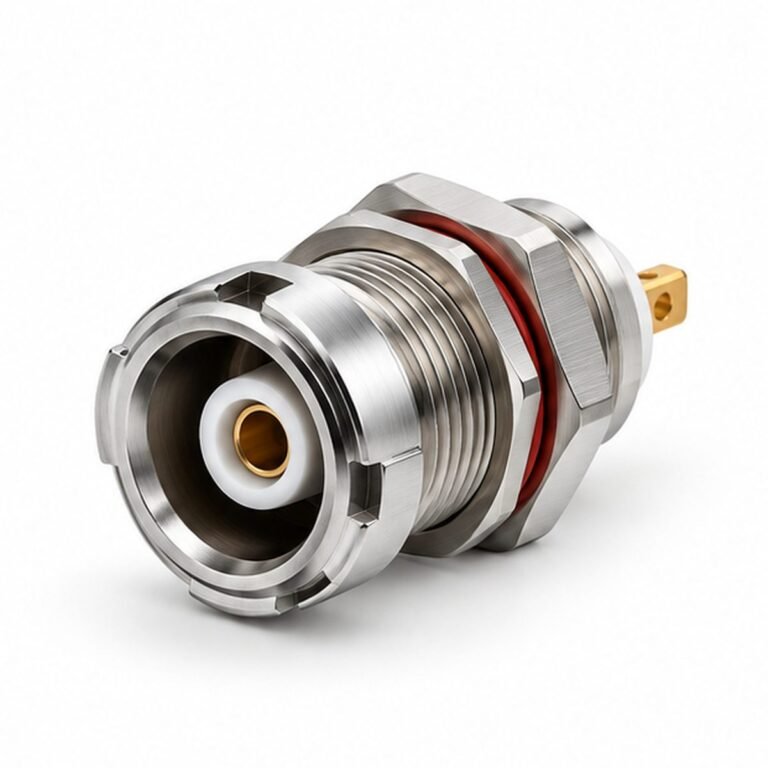

- Panel receptacles and right-angle forms for dense racks and test stations.
- Shielded cable assemblies with continuity and insulation tests.
- Clearly controlled part numbers, pin maps and mating references.
Define before release
- Classify low-level signal, high-speed data, control and power circuits.
- Confirm shielding, grounding and connector body continuity.
- Choose plug and receptacle styles around fixture access.
- Define mating-cycle expectation, labels and test report requirements.
Compatible LMConn products
Recommended product directions
These products are practical starting points for this application. Final pin count, coding, gender, cable and electrical ratings must be confirmed on the approved drawing.
