Plan rugged connections for onboard, station and trackside equipment.
Rail systems combine vibration, long service lives and distributed signal, network and power connections. Each assembly should be specified around installation zone, maintenance access, cable routing and the environmental evidence required by the project.
What the system must connect

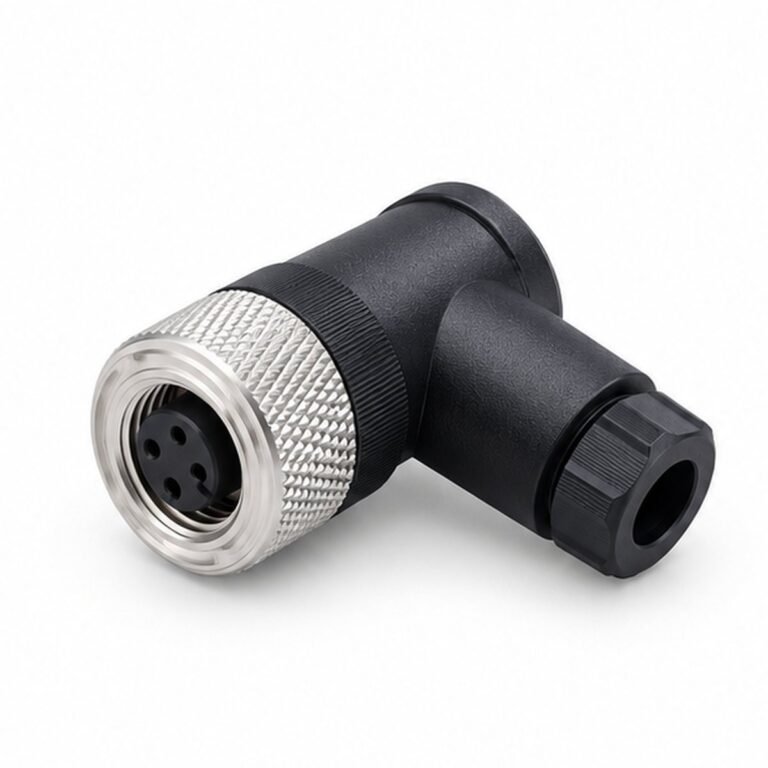

- Threaded M-series interfaces for sensors, doors, controls and onboard equipment.

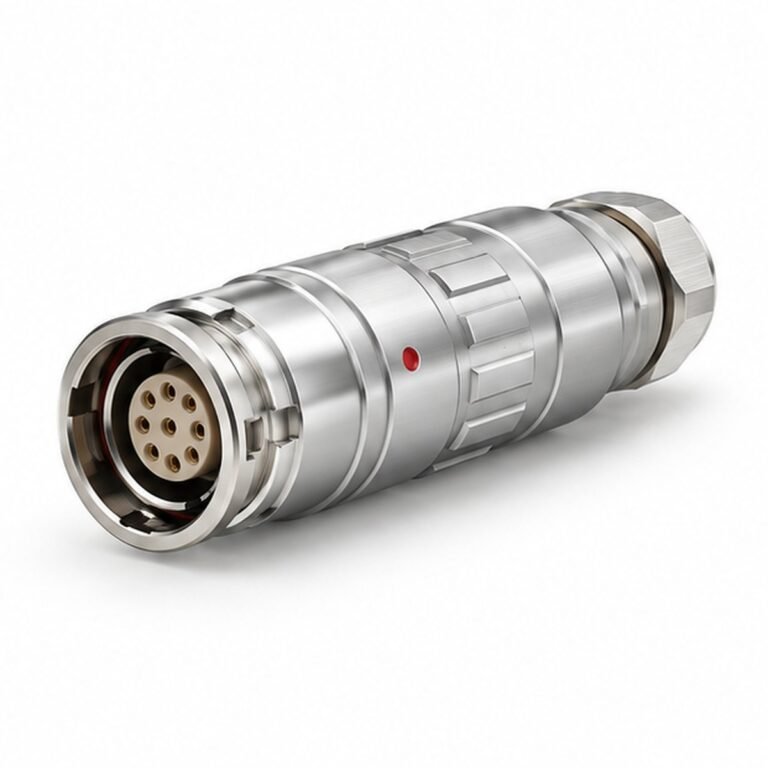

- Sealed push-pull connections for exposed or frequently serviced modules.
- Industrial Ethernet assemblies for cameras, passenger systems and diagnostics.
- Panel feedthroughs for cabinets and equipment enclosures.
- Cable jackets and strain relief matched to vibration and routing constraints.
Define before release
- Divide connections into protected cabin, underfloor and trackside zones.
- Confirm vibration, shock, temperature and ingress requirements.
- Define network category, shielding, grounding and cable length.
- Approve mounting, marking, inspection and replacement procedure.
Compatible LMConn products
Recommended product directions
These products are practical starting points for this application. Final pin count, coding, gender, cable and electrical ratings must be confirmed on the approved drawing.
